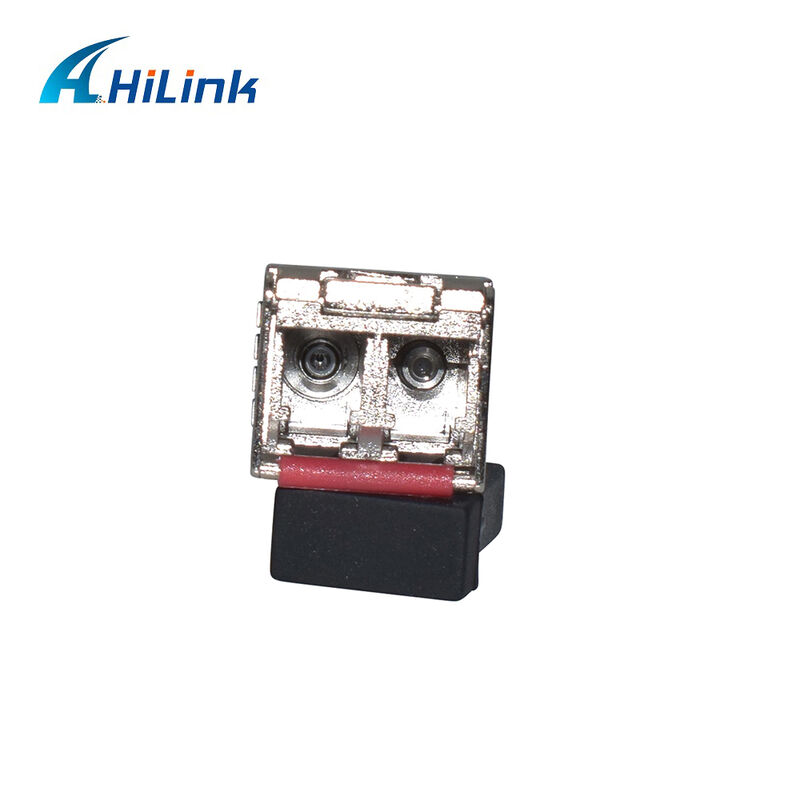

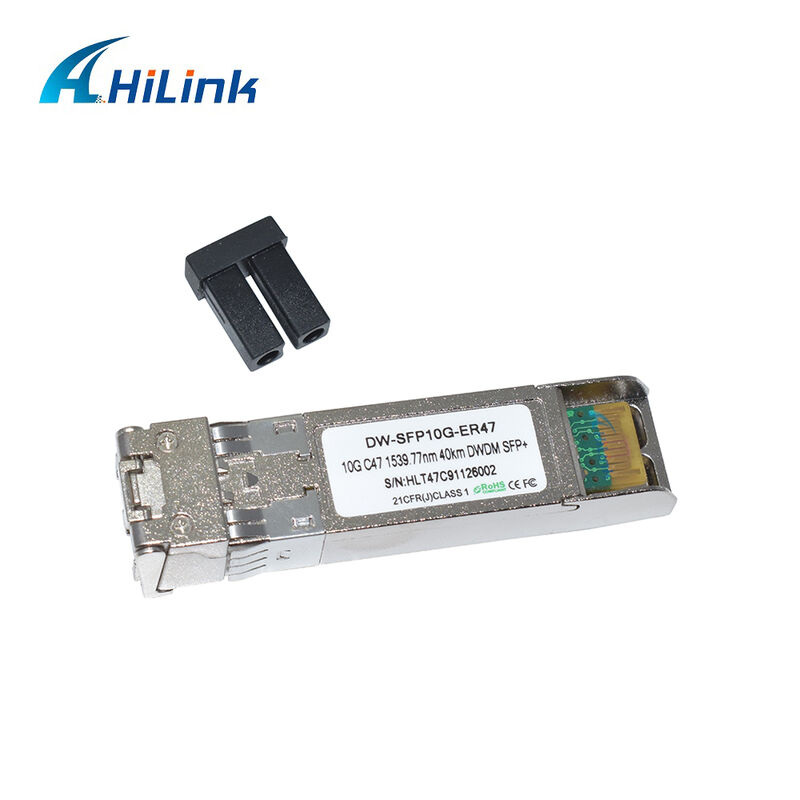

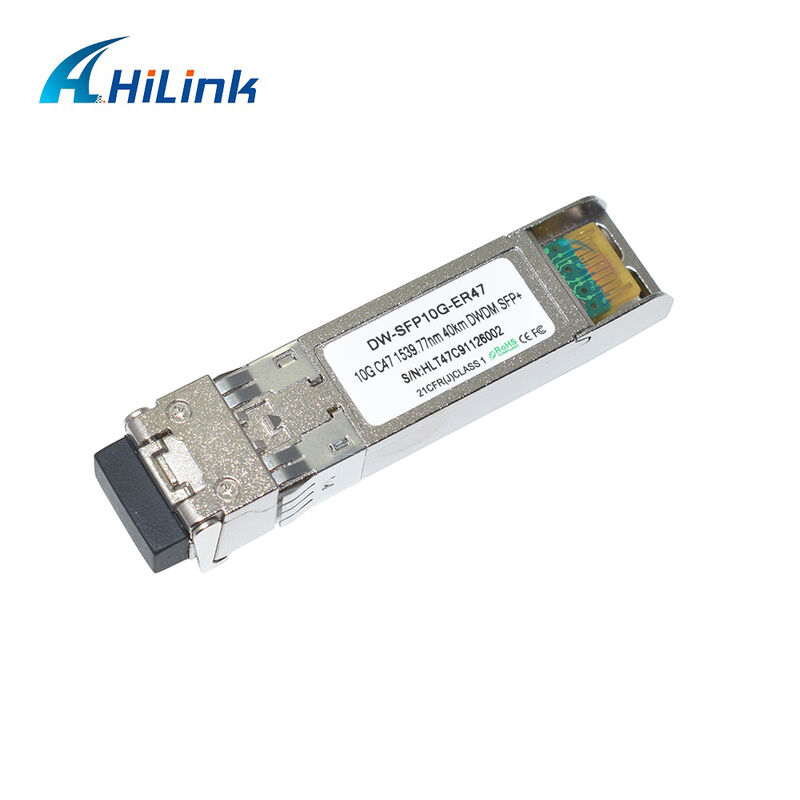

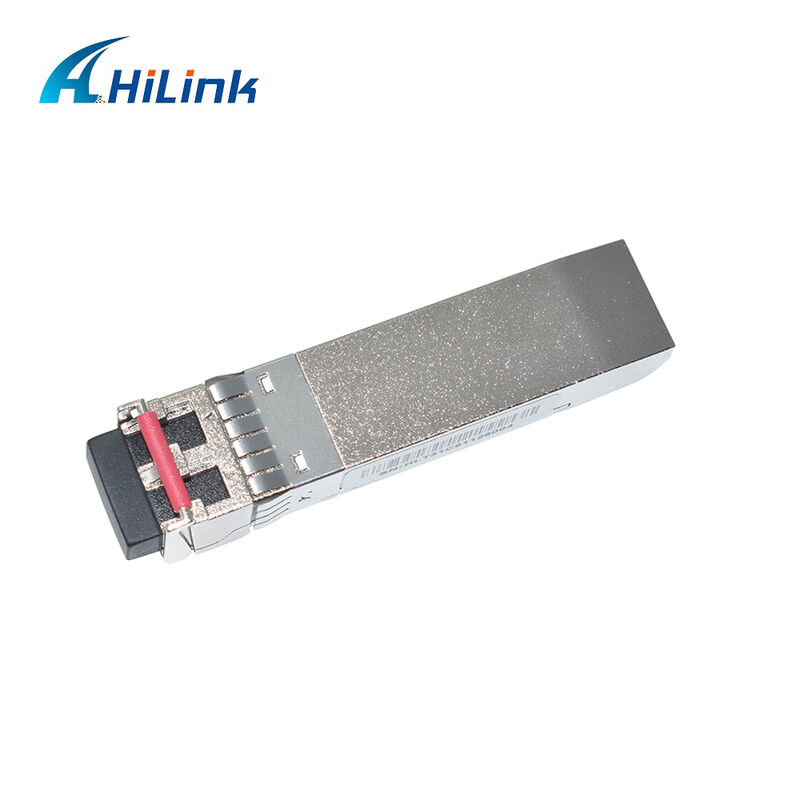

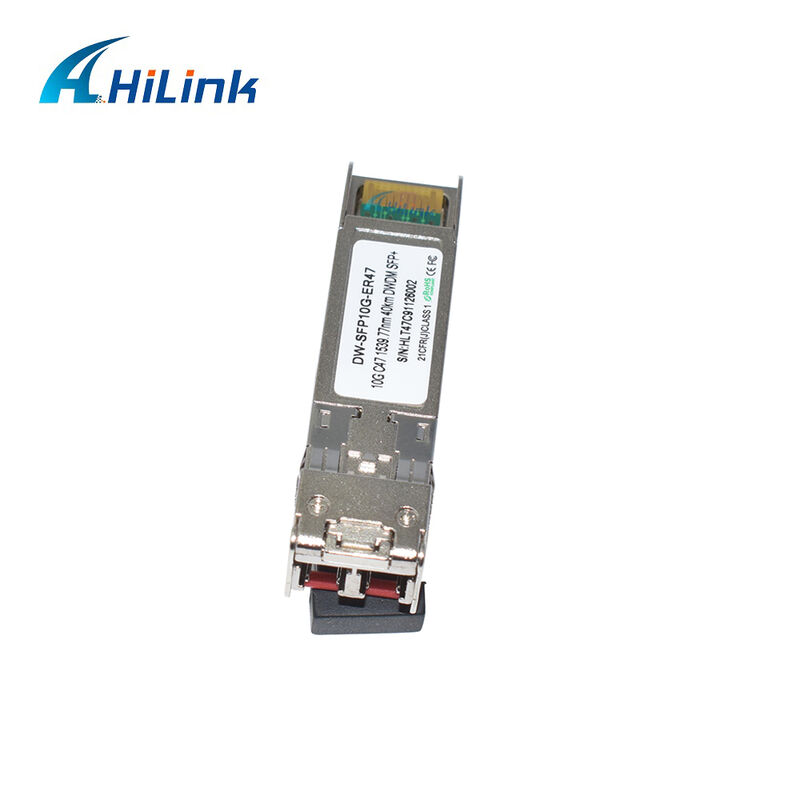

Name: 10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-DWSFP10G-ER
Price: 130.00 USD
Availability: InStock

À la maison > produits > Module optique d'émetteur-récepteur >

10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength

40km Distance Optical Transceiver Module

100GHz Channel Spacing SFP+ Transceiver

CH17~61 Wavelength 10G DWDM SFP+

Lieu d'origine:

Guangdong, Chine

Nom de marque:

Hilink

Certification:

CE RoHs

Numéro de modèle:

HL-DWSFP10G-ER

Nous contacter

Demandez un devis

10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength

Détails du produit

Nom du produit:

10G DWDM SFP+ 40KM

Débit de données:

10g

Longueur d'onde:

CH17 ~ 61

Distance:

40km

Garantie:

3 ans

Certification:

RoHS

Délai de livraison:

3-7 jours ouvrables

OEM:

soutien

Conditions de paiement et d'expédition

Quantité de commande min

1 pièces

Prix

Négociable

Détails d'emballage

Paquet normal ou OEM

Délai de livraison

5-8 jours ouvrables

Conditions de paiement

LC, T/T, Western Union

Produits connexes

10G SFP+ DWDM Transceiver 80km 100km CH17~61 120km CH20~55 100GHz Industrial Commercial Temperature

Obtenez le meilleur prix

10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength

Obtenez le meilleur prix

Hilink câbles de harnais MTP/MPO personnalisés

Obtenez le meilleur prix

Câbles patchcord MTP/MPO personnalisés Hilink

Obtenez le meilleur prix

Nous contacter

Contactez-nous maintenant

Description du produit

10G SFP+ DWDM Optical Transceiver Module

HILINK's 10G DWDM SFP+ 40KM Enhanced Small Form Factor Pluggable transceivers are designed for use in 10-Gigabit Ethernet links up to 40km over Single Mode fiber. These high-performance, cost-effective solutions are optimized for telecommunications applications and comply with SFF-8431, SFF-8432 and ITU-T G.698.1 standards.

Product Overview

This transceiver features a cooled EML laser in the transmitter section and a PIN photodiode integrated with TIA in the receiver section. All modules satisfy Class I laser safety requirements and include digital diagnostics functions via a 2-wire serial interface as specified in SFF-8472, providing real-time access to operating parameters.

Key Features

Supports 9.95 to 11.3 Gb/s bit rates
Duplex LC connector
Hot pluggable SFP+ footprint
Cooled EML transmitter and PIN-TIA receiver
40km Single Mode Fiber connection capability
Low power consumption < 1.2W
100 GHz channel spacing
Digital Diagnostic Monitor Interface
Optical interface compliant to ITU-T 694.1 & G.698.1
Electrical interface compliant to SFF-8431 & SFF-8432
Operating case temperature options:
- Commercial: 0°C to 70°C
- Industrial: -5°C to 80°C

Applications

10G Ethernet
2x, 4x, 8x Fiber Channel
ITU-T G.698.1 compliant systems
Other optical link applications

Channel Selection Specifications

Channel	Frequency (THz)	Center Wavelength (nm)
17	191.7	1563.86
18	191.8	1563.05
19	191.9	1562.23
20	192.0	1561.42
21	192.1	1560.61
22	192.2	1559.79
23	192.3	1558.98
24	192.4	1558.17
25	192.5	1557.36
26	192.6	1556.55
27	192.7	1555.75
28	192.8	1554.94
29	192.9	1554.13
30	193.0	1553.33
31	193.1	1552.52
32	193.2	1551.72
33	193.3	1550.92
34	193.4	1550.12
35	193.5	1549.32
36	193.6	1548.51
37	193.7	1547.72
38	193.8	1546.92
39	193.9	1546.12
40	194.0	1545.32
41	194.1	1544.53
42	194.2	1543.73
43	194.3	1542.94
44	194.4	1542.14
45	194.5	1541.35
46	194.6	1540.56
47	194.7	1539.77
48	194.8	1538.98
49	194.9	1538.19
50	195.0	1537.40
51	195.1	1536.61
52	195.2	1535.82
53	195.3	1535.04
54	195.4	1534.25
55	195.5	1533.47
56	195.6	1532.68
57	195.7	1531.90
58	195.8	1531.12
59	195.9	1530.33
60	196.0	1529.55
61	196.1	1528.77

Available in channels 17 through 61 with 100 GHz spacing for flexible network deployment.
