Name: Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optical Transceiver with 10km Distance and Hot Pluggable Design
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP200G-LR8
Price: 130.00 USD
Availability: InStock

À la maison > produits > Module optique d'émetteur-récepteur >

Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optical Transceiver with 10km Distance and Hot Pluggable Design

Lieu d'origine:

Guangdong, Chine

Nom de marque:

Hilink

Certification:

CE RoHs

Numéro de modèle:

HL-QSFP200G-LR8

Nous contacter

Demandez un devis

Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optical Transceiver with 10km Distance and Hot Pluggable Design

Détails du produit

Nom du produit:

QSFP200G-LR8

Débit de données:

200g

Distance:

10km

Garantie:

3 ans

Certification:

RoHS

Délai de livraison:

3-7 jours ouvrables

OEM:

Soutien

Conditions de paiement et d'expédition

Quantité de commande min

1 pièces

Prix

Négociable

Détails d'emballage

Paquet normal ou OEM

Délai de livraison

5-8 jours ouvrables

Conditions de paiement

LC, T/T, Western Union

Produits connexes

Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver With Diagnostic Monitoring

Obtenez le meilleur prix

Hilink QDD-400G-SR8 Multi-mode 850nm 400G BASE-SR8 QSFP-DD Transceiver, With Diagnostic Monitoring

Obtenez le meilleur prix

vidéo

Transceiver optique QSFP-DD PAM4 100m DOM MTP/MPO-16 400G MMF 850nm QDD-400G-SR8

Obtenez le meilleur prix

QSFP56 200G Transcepteur multimode 850nm 200G BASE-SR4 QSFP56

Obtenez le meilleur prix

Nous contacter

Contactez-nous maintenant

Description du produit

Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 10km Optical Transceiver (MPO16)

Feel free to contact us for details, compatibility, customization and wholesale pricing.

The HL-QSFP200G-LR8 is an eight-channel, pluggable, parallel, fiber-optic QSFP DD PSM8 transceiver designed for 2×100 Gigabit Ethernet and Infiniband DDR/EDR applications. This high-performance module integrates eight data lanes in each direction with 208 Gbps bandwidth, with each lane operating at 26Gbps up to 10km over G.652 single-mode fiber. The modules operate over single-mode fiber systems using a nominal wavelength of 1310nm, featuring a 76-contact edge type electrical connector and a 16-fiber MTP (MPO) optical connector.

Incorporating Hilink Technologies' proven circuit and optical technology, this transceiver provides reliable long life, high performance, and consistent service for demanding data communication and interconnect applications.

Key Features

8 channels full-duplex transceiver modules
Supports 8×25Gb/s aggregate bit rates
Supports 8×10Gb/s aggregate bit rates if required
8 channels 1310nm DFB
8 channels PIN photo detector array
Internal CDR circuits on both receiver and transmitter channels
Support CDR bypass
Low power consumption <6.5W
Hot Pluggable QSFP DD form factor
Up to 10km reach for G.652 SMF
Single male MPO16 (APC 8-degree) connector receptacle
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS compliant (lead free)

Applications

2×100G Ethernet links
Infiniband DDR/EDR
Datacenter and Enterprise networking

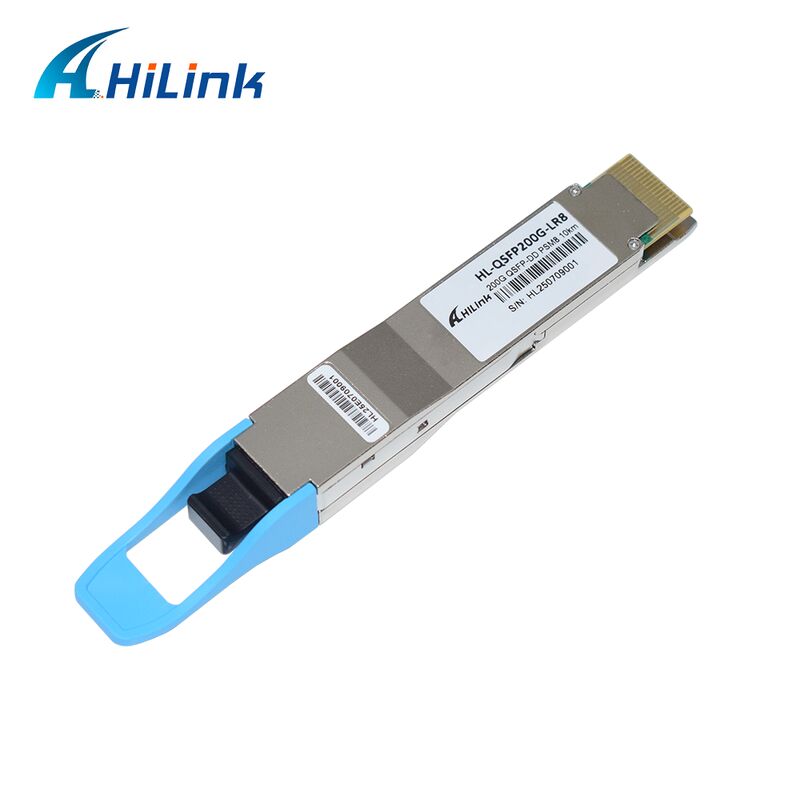

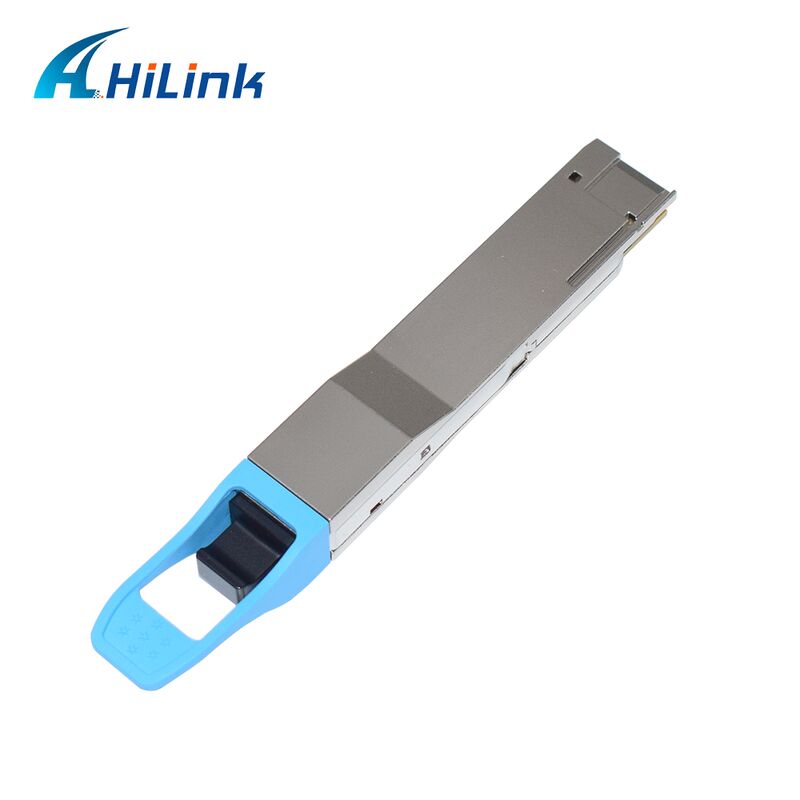

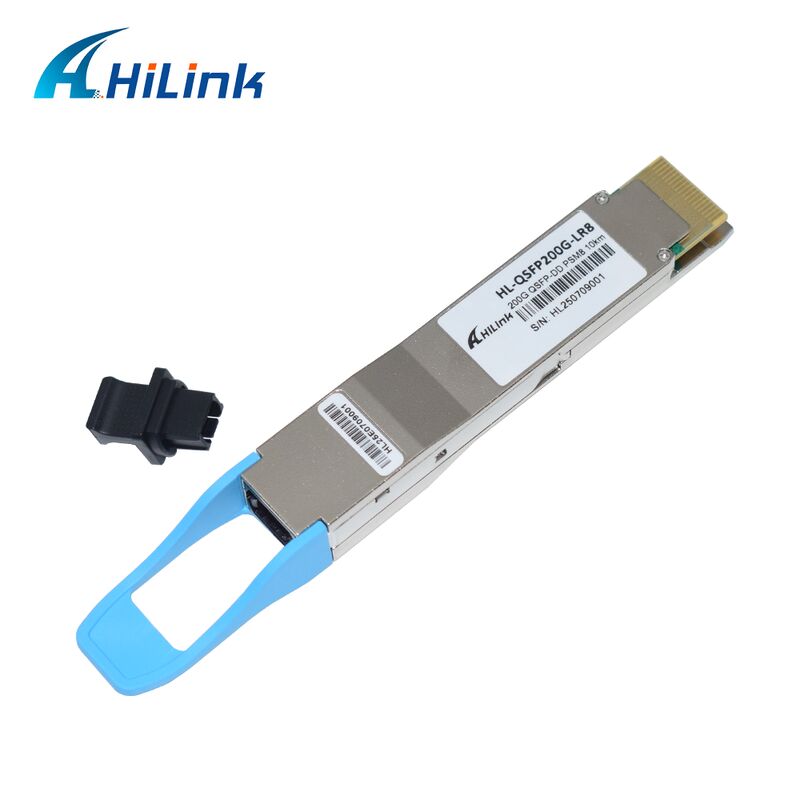

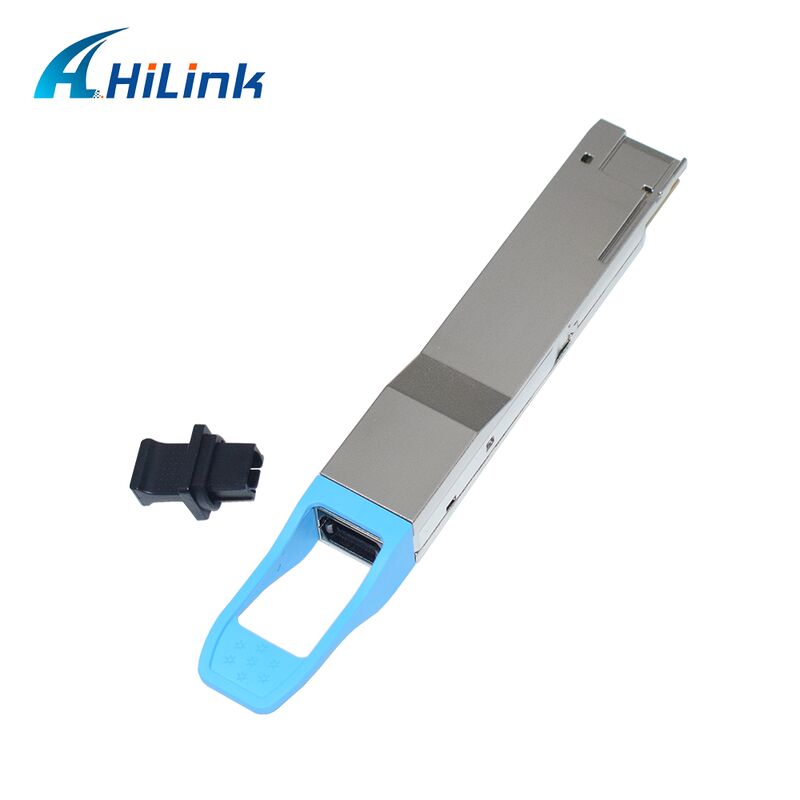

Product Images
